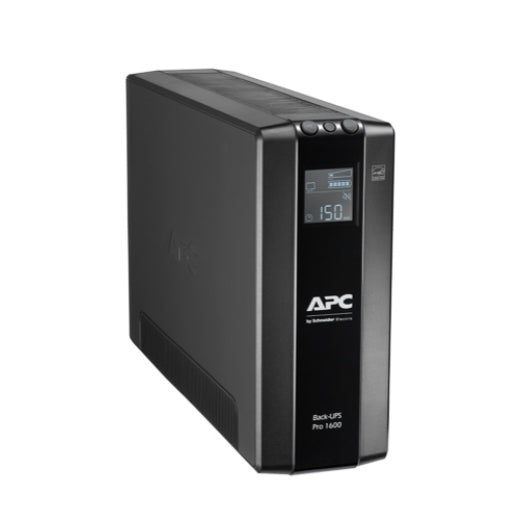

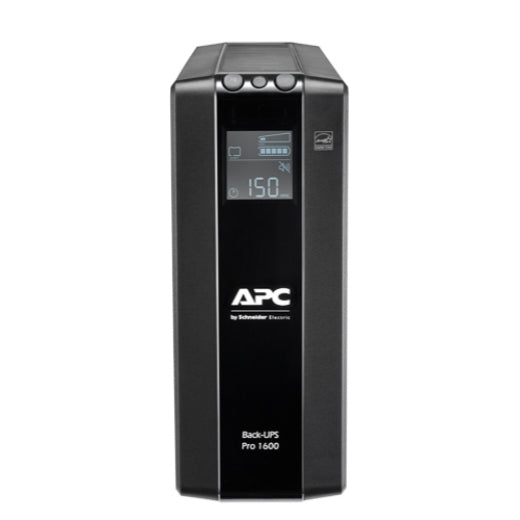

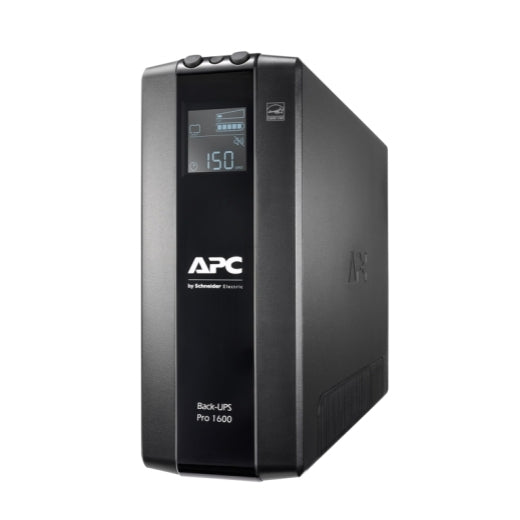

APC Back-UPS Pro 1600VA/960W Line Interactive UPS

APC Back-UPS Pro BR1600MI – Premium Power Protection UPS

Product Overview

Premium battery backup + surge protection UPS

Designed for home, home office, and small business

Increased runtime and power capacity for critical electronics

Keeps devices running long enough to save work and safely shut down

Model

APC Back-UPS Pro

Model number: BR1600MI

Power Capacity

Output power capacity: 960 W

Apparent power: 1.6 kVA

Max configurable power: 960 W / 1.6 kVA

UPS Topology

Line-interactive UPS

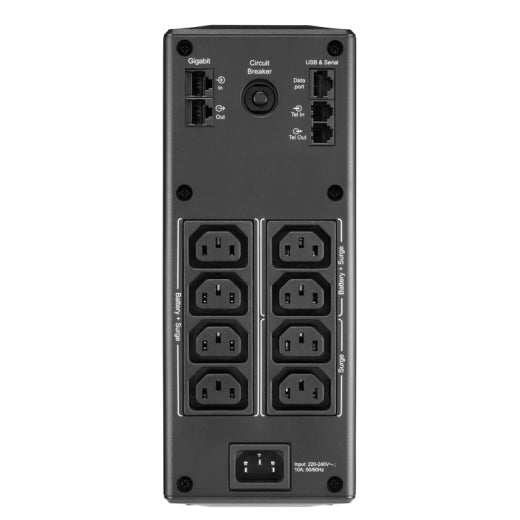

Outlets

Total outlets: 8 × IEC

Battery backup + surge protection:

6 × IEC 60320 C13

Surge protection only:

2 × IEC 60320 C13

Output Electrical Specifications

Nominal output voltage: 230 V

Output frequency (sync to mains): 50/60 Hz ± 1 Hz

Input Electrical Specifications

Nominal input voltage: 230 V

Input connection: IEC 60320 C14

Input frequency: 50/60 Hz ± 3 Hz (auto-sensing)

Input voltage range: 176 – 294 V

Key Protection Features

Battery backup for power outages

Surge protection against spikes, surges, and dips

Automatic Voltage Regulation (AVR)

Boost and Trim voltage regulation

Preserves battery runtime during unstable voltage conditions

Recommended Use Cases

Gaming & professional equipment

High-end desktops

Gaming PCs

Workstations

Network-attached storage (NAS)

Home entertainment

TVs

Set-top boxes

Media players

Speaker systems

Smart home

Smart speakers

Security systems

Surveillance cameras

Keeps modem/router and smart devices powered for continued connectivity during outages

Runtime Examples (BR1600MI)

40 W load: 159 minutes

120 W load: 57 minutes

240 W load: 26 minutes

335 W load: 17 minutes

Runtime varies depending on device load and UPS settings

Additional Features

1 Gb network protection

RJ45 10/100/1000 Base-T Ethernet surge protection

Prevents surges travelling along data lines without reducing internet speed

LCD interface

Easy-to-read screen

Displays UPS and utility power conditions

PowerChute Personal Edition software

Helps prevent data loss during extended outages

Enables graceful shutdown and monitoring

Surge Protection & Filtering

Surge energy rating: 509 Joules

Filtering:

Full time multi-pole noise filtering

10% of IEEE surge let-through

Zero clamping response time (instantaneous)

Batteries & Runtime

Battery type: Lead-acid

Nominal battery voltage: 24 V

Typical recharge time: 16 hours

Expected battery life: 3 – 5 years

Replacement battery: APCRBC166

Battery charge power: 11 W

RBC quantity: 1

Communications & Management

Interface: USB

Control panel: Multifunction LCD status and control console

Audible alarms:

On battery

Low battery

Overload (continuous tone)

Physical Specifications

Colour: Black

Dimensions (H × W × D): 250 mm × 100 mm × 382 mm

Net weight: 10.9 kg

Shipping weight: 11.65 kg

Shipping dimensions (H × W × D): 330 mm × 485 mm × 225 mm

SCC code: 10731304346910

Environmental

Operating temperature: 0 – 40°C

Operating humidity: 0 – 95% (non-condensing)

Operating elevation: 0 – 3048 m

Storage temperature: -15 – 45°C

Storage humidity: 0 – 95% (non-condensing)

Storage elevation: 0 – 15240 m

Audible noise at 1 m: 45.0 dBA

Thermal dissipation (online): 22.0 BTU/hr

Compliance & Approvals

Approvals:

A-Tick

C-Tick

CE

EAC

GS Mark

RCM

TISI

RoHS: Compliant

Equipment Protection Policy

Lifetime equipment protection policy: AUD $200,000

Warranty

2 years repair or replace warranty
