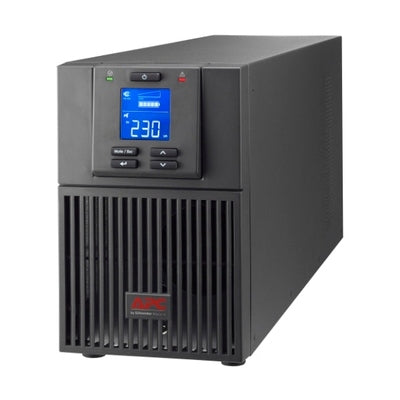

APC Easy UPS 1000VA/800W Online UPS

APC Easy UPS On-Line SRV1KI

Product Overview

Single-phase online UPS

Designed for IT professionals and network administrators

Ensures business uptime and continuity

Suitable for unstable and inconsistent power environments

Provides clean, reliable power protection for critical equipment

UPS Type

True double-conversion online UPS

Zero transfer time

Pure sine wave output

Power Capacity

Rated power: 1000 VA

Output power capacity: 800 W

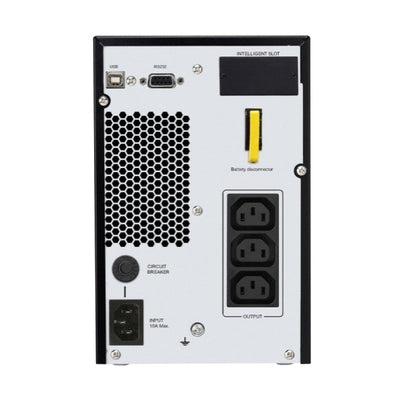

Output Connections

3 × IEC 60320 C13 sockets

Input

Main input voltage: 230 V

Supported input voltages: 220 V / 240 V

Input voltage range:

110 – 285 V (half load)

160 – 280 V (full load)

Input connection type: IEC 60320 C14

Input frequency: 40 – 70 Hz (auto-sensing)

Output

Main output voltage: 230 V

Supported output voltages: 220 V / 240 V

Output frequency: 50 / 60 Hz ± 3 Hz (sync to mains)

Harmonic distortion: 3%

Crest factor: 3:1

Efficiency: 88% at full load

Internal bypass:

Automatic

Manual

Configurable nominal output voltage (220 / 230 / 240 V)

Runtime

Maximum runtime: 4 minutes

Runtime varies based on load and configuration

Battery

Battery type: Lead-acid

Battery voltage: 24 V

Battery slots:

Filled: 1

Free: 0

Battery recharge time: 4 hours

Battery life expectancy: 3 – 5 years

Replacement battery cartridge: APCRBCV203

Battery charger power: 30 W (rated)

Surge Protection

Surge energy rating: 600 J

Monitoring & Management

Multifunction LCD status and control panel

Local configuration via LCD interface

Alarm notifications:

On battery

Low battery

Overload

Intelligent card slot for optional Network Management Card

Compatible with EcoStruxure IT platforms

USB communication supported

RS-232 communication supported

Smart Management Platforms

EcoStruxure IT Expert (monitoring)

EcoStruxure IT Advisor (planning & modeling)

EcoStruxure Asset Advisor (24/7 monitoring)

Optional Network Management Cards (sold separately):

AP9544

SRVSMB001

VGL9601l

Emergency & Safety

Emergency Power Off (EPO)

Automatic bypass ensures continuous power during internal faults

Physical Specifications

Colour: Black (RAL 7010)

Height: 22.3 cm

Width: 14.5 cm

Depth: 28.8 cm

Net weight: 9.3 kg

Mounting:

Floor mounted

Vertical orientation

Not rack-mountable

Environmental

Operating temperature: 0 – 40°C

Operating humidity: 0 – 95% (non-condensing)

Operating altitude: 0 – 3000 m

Storage temperature: -20 – 50°C

Storage humidity: 0 – 95% (non-condensing)

Storage altitude: 0 – 15,000 m

Acoustic noise level: 50 dBA

Heat dissipation: 372 Btu/h

IP protection rating: IP20

Certifications & Standards

Certifications:

CE

UKCA

EAC

TISI

Standards:

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Sustainability

Schneider Electric Green Premium product

Focus on environmental, social, and governance (ESG) leadership

Designed for energy efficiency and long-term reliability

Included Accessories

IEC 60320 C13 to Schuko power cable

IEC 60320 C13 to C14 power cable

USB cable

RS-232 configuration cable

User manual

Warranty

2-year repair or replace warranty
