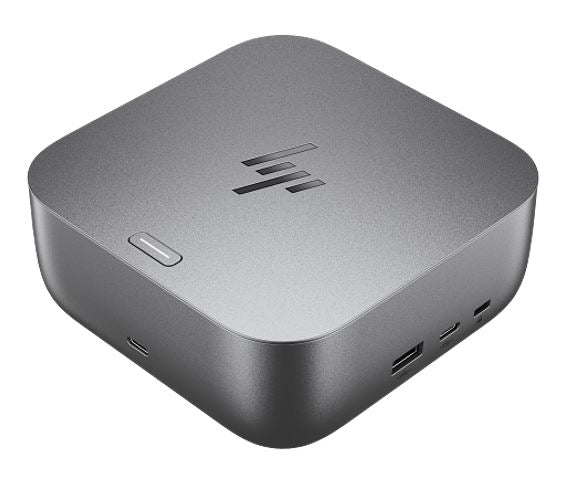

HP Dock G6 Thunderbolt 4 Ulltra Docking Station

HP Dock G6 Thunderbolt 4 Ultra Docking Station (280W PD)

Product Overview

High-performance Thunderbolt™ 4 docking station for HP workstations and compatible PCs

Supports up to 4 displays (quad monitor support)

High power delivery for workstation-class laptops

Rear I/O port layout with RGB status lighting

Connection & Cable

Connection type: Thunderbolt™ 4 + 4.5 mm power barrel

Included cable:

1 × Thunderbolt™ 4 cable

4.5 mm power barrel to connect to host system

Cable length: 1 m

Power

External power adapter: 330 W

Operating voltage: 19.5 V

Maximum current: 6.15 A

Power delivery to host:

Up to 280 W via 4.5 mm power barrel

Up to 180 W via Thunderbolt™ 4 cable

Supports HP and non-HP host devices that support USB Power Delivery 3.1

Power delivery (PD) profiles:

20V/5A

15V/5A

12V/5A

9V/3A

5V/3A

Display Support

Display modes:

Up to 3 external displays + 1 PC display, or

Up to 4 external displays

Quad monitor support: Yes

Maximum resolution: Up to 8K

Maximum refresh rate: Up to 360 Hz

Video outputs:

2 × DisplayPort™ 1.4

1 × HDMI 2.1

Ports

1 × Thunderbolt™ 4 (USB Type-C®, 40 Gbps)

1 × USB Type-C® (10 Gbps, USB Power Delivery, DisplayPort™ 1.4)

2 × USB Type-A (5 Gbps, charging)

1 × HDMI 2.1

2 × DisplayPort™ 1.4

1 × RJ-45 Ethernet (2.5 GbE)

Networking

Ethernet: 1 × RJ-45 (2.5 GbE)

Drivers included:

Intel® NIC driver

Realtek NIC driver (ARM)

Realtek NIC driver (Windows)

LED Indicators & Controls

Front LED bar: RGB LED (white, blue, amber, green, red)

Power button: RGB LED (white, blue, amber, green, red)

Power button type: Mechanical power button (powers/wakes host system)

Security

1 × Nano security lock slot

Management & Enterprise Features

Management features:

HP CMSL

Disconnected firmware updates

eTag

PXE Boot

Wake on LAN (Off / Sleep / Hibernate)

MAC address pass-through (On / Off / Sleep / Hibernate)

LAN/WLAN switching

Disable LAN

Event messaging

Intel® vPro® Technology (wired)

Management software:

Poly Lens with automatic firmware updates

Compatibility

Tested and supported on select HP commercial PCs

Tested with select 3rd party systems (Dell, Lenovo, Apple)

Minimum system requirements:

USB Type-C® (USB Power Delivery, DisplayPort™ Alt Mode)

Thunderbolt™ 4 port

Compatible operating systems:

Windows 10

Windows 11

macOS

Linux

ThinPro

ChromeOS

Physical Specifications

Dimensions (W × D × H): 12.1 × 12.1 × 4.95 cm

I/O port location: Rear

Material type: FERT

Environmental

Operating humidity: 10% to 90% non-condensing

Non-operating humidity: 5% to 95% non-condensing

Operating altitude: -15 m to 3,048 m

Non-operating temperature: -20°C to 60°C

Packaging & Logistics

Package dimensions (W × D × H): 39.6 × 17.1 × 9.5 cm

Package weight: 1.14 kg

Products per pallet:

168 (air)

392 (ocean)

Products per pallet layer: 28

Cartons per layer: 28

Cartons per pallet:

5 (air)

10 (ocean)

Pallet layers:

6 (air)

14 (ocean)

Pallet dimensions (W × D × H): 120 × 100 × 14 cm

Multiple order quantity: 1

Other

Country of origin: Made in China or Thailand

Collaboration certification: Intel® Thunderbolt™ 4

Registration required: No

Warranty

HP 3-year limited warranty
