LENOVO ThinkCentre M70q G5 Tiny Desktop PC

Lenovo ThinkCentre M70q Gen 5 Tiny – Desktop PC (CTO)

Product Overview

Business-class Tiny desktop PC

Form factor: Tiny (1L)

Configured-to-order (CTO) model

Includes keyboard + mouse

Designed for office productivity and enterprise deployment

Operating System

Windows® 11 Pro

Processor

Intel® Core™ i5-14400T

10 cores (6 Performance + 4 Efficiency)

16 threads

P-core frequency: 1.5 GHz base / up to 4.5 GHz

E-core frequency: 1.1 GHz base / up to 3.2 GHz

Cache: 20 MB

Chipset

Intel® Q670 chipset

Graphics

Integrated Intel® UHD Graphics 730

Memory

16 GB DDR5-4800

2 × 8 GB SO-DIMM

Dual-channel capable

2 × DDR5 SO-DIMM memory slots

Storage

ACER FA100 512GB M.2 NVMe SSD

Interface: PCIe Gen3 x4

Read speed: up to 3300 MB/s

Write speed: up to 2200 MB/s

SSD warranty: 5 years

Part reference: BL.9BWWA.119

Storage Support

Dual SSD mode supported

Supports up to 2 × M.2 SSDs

M.2 2280 SSD support: up to 2 TB per drive

Expansion Slots

3 × M.2 slots total

1 × M.2 for WLAN

2 × M.2 for SSD storage

Networking

Ethernet: Integrated 100/1000 Mbps (RJ-45)

Wireless: Intel® Wi-Fi® 6 AX201 (802.11ax, 2×2)

Bluetooth: BT 5.2

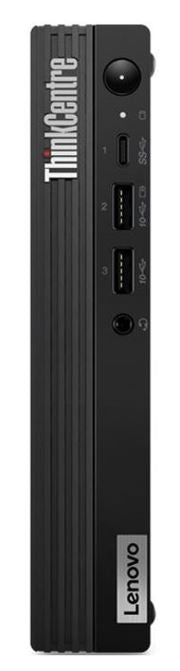

Front Ports

1 × USB-C® (USB 5 Gbps / USB 3.2 Gen 1)

5V @ 0.9A charging

1 × USB-A (USB 10 Gbps / USB 3.2 Gen 2)

Always On

5V @ 2.1A charging

1 × USB-A (USB 10 Gbps / USB 3.2 Gen 2)

1 × 3.5 mm headphone / microphone combo jack

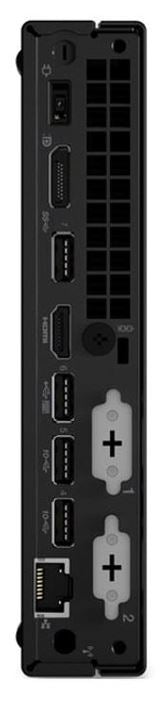

Rear Ports

1 × USB-A (Hi-Speed USB / USB 2.0)

1 × USB-A (USB 5 Gbps / USB 3.2 Gen 1)

2 × USB-A (USB 10 Gbps / USB 3.2 Gen 2)

1 × HDMI® 2.1 TMDS

1 × DisplayPort™ 1.4a (HBR2, DSC)

1 × Ethernet (RJ-45)

Included Accessories

Keyboard: USB Traditional Keyboard (Black, English)

Mouse: USB Calliope Mouse (Black)

Physical Specifications

Dimensions (W × D × H): 179 × 182.9 × 36.5 mm

Weight: 1.25 kg

Warranty

Base system warranty: 3-year onsite

Note: SSD warranty handled separately (Leader coverage)
