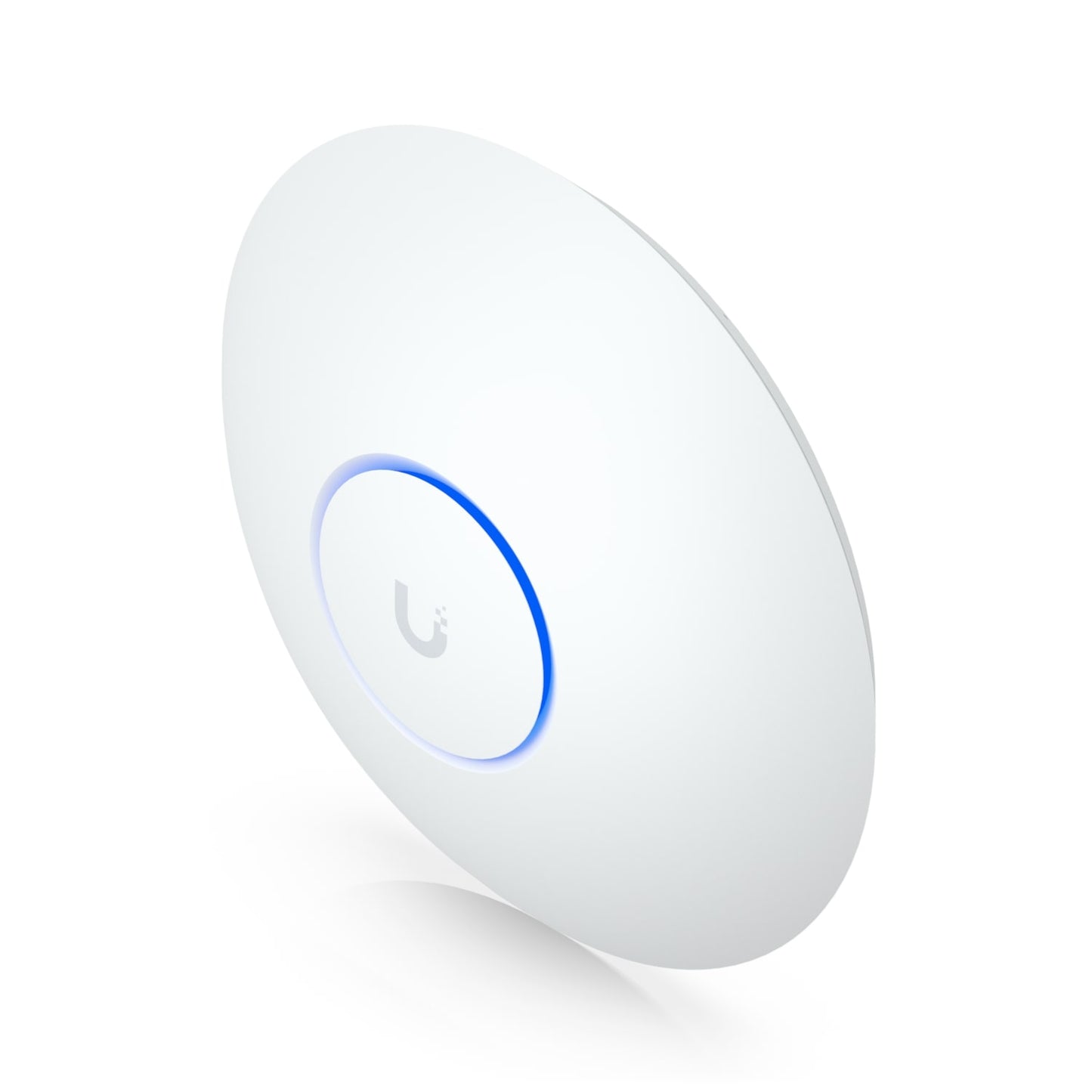

Ubiquiti U7 Long-Range, Compact, Ceiling-mount WiFi 7 AP

Ubiquiti UniFi U7 Long-Range (U7 LR) – WiFi 7 Access Point

Product Overview

Compact, ceiling-mount WiFi 7 access point with extended range

Designed for business and high-density environments

High device capacity and improved reliability through advanced WiFi 7 performance

Supports wireless meshing and enterprise-grade guest networking features

WiFi Standard

WiFi 7 (802.11be)

Coverage & Capacity

Coverage area: 160 m² (1,750 ft²)

Maximum connected devices: 300+

Spatial streams: 5

Networking / Uplink

Uplink speed: 2.5 GbE

Networking interface: 1 × 2.5 GbE RJ45 port

Power

Power method: PoE

PoE adapter included: No

Supported voltage range: 42.5 – 57 V DC

Max power consumption: 14 W

Performance (MIMO / Throughput)

MIMO configuration:

5 GHz: 3 × 3 (DL/UL MU-MIMO)

2.4 GHz: 2 × 2 (DL/UL MU-MIMO)

Max data rate:

5 GHz: 4.3 Gbps (160 MHz bandwidth)

2.4 GHz: 688 Mbps (40 MHz bandwidth)

Antenna gain:

5 GHz: 6 dBi

2.4 GHz: 4 dBi

Max TX power:

5 GHz: 27 dBm

2.4 GHz: 26 dBm

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0–MCS13, NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0–MCS11, NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0–MCS9, NSS1/2/3, VHT 20/40/80/160)

802.11n: 6.5 Mbps to 450 Mbps (MCS0–MCS23, HT 20/40)

Wireless / Network Features

Wireless meshing: Yes

Band steering: Yes

802.11v BSS Transition Management: Yes

802.11r Fast Roaming: Yes

802.11k Radio Resource Management (RRM): Yes

Advanced radio management: Yes

Passpoint (Hotspot 2.0): Yes

Private Pre-Shared Key (PPSK): Yes

WiFi speed limiting: Yes

Client device isolation: Yes

WiFi schedules: Yes

RADIUS over TLS (RadSec): Yes

Dynamic RADIUS-assigned VLAN: Yes

Guest network isolation: Yes

Captive Portal / Guest Access

Captive hotspot portal: Supported

Custom branding landing page: Yes

Voucher authentication: Yes

Payment-based authentication: Yes

External portal server support: Yes

Password authentication: Yes

Mechanical / Build

Dimensions: Ø175.7 × 43 mm (Ø6.9 × 1.7")

Weight: 448 g (15.8 oz)

Enclosure material: Polycarbonate, aluminum alloy

Mount material: Polycarbonate, galvanized steel (SGCC)

Mounting

Ceiling mount

Wall mount

Plastic mounting plate included

LED Indicators

System LED: White / Blue

Channel Bandwidth Support

HT: 20/40 MHz

VHT: 20/40/80/160 MHz

HE: 20/40/80/160 MHz

EHT: 20/40/80/160 MHz

Compliance

NDAA compliant: Yes

Certifications: CE, FCC, IC

Operating Environment

Ambient operating temperature: -30°C to 50°C (-22°F to 122°F)

Ambient operating humidity: 5% to 95% non-condensing

Software Requirements

UniFi Network application: Version 9.1.120 and later

Mobile app requirements:

iOS™ version 10.20.2 and later

Android™ version 10.21.7 and later
