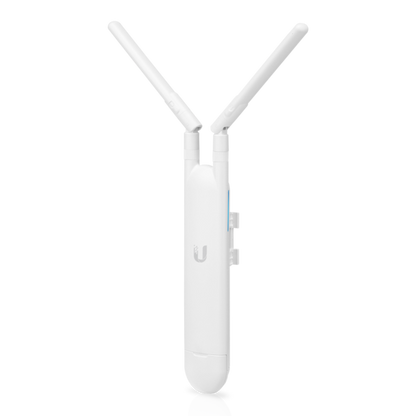

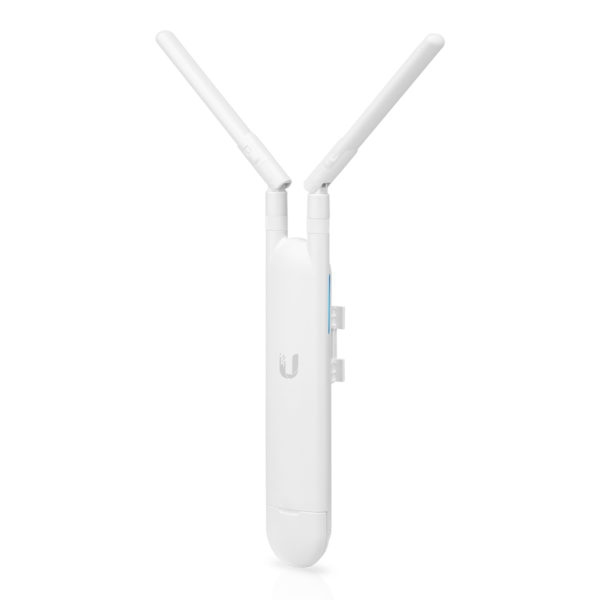

Ubiquiti UniFi AC Mesh Outdoor Access Point

Ubiquiti UniFi AC Mesh (UAP-AC-M) – Indoor/Outdoor WiFi 5 Mesh AP

Product Overview

Compact WiFi 5 (802.11ac) indoor/outdoor mesh access point

Dual-band 2.4 GHz + 5 GHz operation

4 spatial streams

Weather-resistant design for flexible deployment

Optional external antenna support for directional coverage

Designed for wide-area WiFi expansion and mesh deployments

Wireless Standard / Radios

WiFi Standard: WiFi 5 (802.11ac)

Dual-radio: 2.4 GHz / 5 GHz

Spatial Streams: 4

Wireless meshing: Supported

Coverage & Capacity

Coverage area: 140 m² (1,500 ft²)

Max client count: 200+ devices

Antennas

Adjustable dual-band omni antennas

Optional directional antenna support:

UMA-D external antenna accessory (sold separately)

Weatherproofing

IPX4 weatherproof rating

Suitable for indoor and outdoor use

Networking

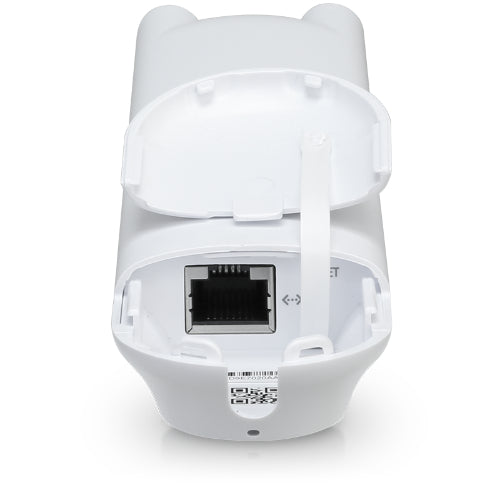

Uplink: 1 × GbE

Networking interface: 1 × GbE RJ45 port

Power

Power method: PoE

PoE adapter included: Yes

Max power consumption: 8.5 W

Supported voltage range: 44 – 57 V DC

Performance (MIMO / Data Rates)

MIMO:

5 GHz: 2 × 2 (DL MU-MIMO)

2.4 GHz: 2 × 2 (DL MU-MIMO)

Max data rate:

5 GHz: 867 Mbps (80 MHz bandwidth)

2.4 GHz: 300 Mbps (40 MHz bandwidth)

Antenna gain:

5 GHz: 4 dBi

2.4 GHz: 3 dBi

Max TX power:

5 GHz: 20 dBm

2.4 GHz: 20 dBm

Max BSSIDs: 8 per radio

Channel bandwidth support:

HT 20/40

VHT 20/40/80

Supported Data Rates

802.11ac (WiFi 5): 6.5 Mbps to 867 Mbps (MCS0–MCS9, NSS1/2, VHT 20/40/80)

802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)

Advanced Wireless Features

Band steering: Yes

802.11v BSS Transition Management: Yes

802.11r Fast Roaming: Yes

802.11k Radio Resource Management (RRM): Yes

Advanced radio management: Yes

Passpoint (Hotspot 2.0): Yes

Private Pre-Shared Key (PPSK): Yes

WiFi speed limiting: Yes

Client device isolation: Yes

Guest network isolation: Yes

WiFi schedules: Yes

RADIUS over TLS (RadSec): Yes

Dynamic RADIUS-assigned VLAN: Yes

Guest Portal / Hotspot Features

Captive hotspot portal: Yes

Custom branded landing page: Yes

Voucher authentication: Yes

Payment-based authentication: Yes

External portal server support: Yes

Password authentication: Yes

Management

Management interfaces:

Ethernet

Bluetooth

UniFi Network application requirement:

UniFi Network version 6.0.45 or later

Physical Specifications

Dimensions: 353 × 46 × 34.4 mm (13.9 × 1.8 × 1.4")

Weight: 152 g (5.4 oz)

Enclosure material: Polycarbonate

Pole mount diameter support: 1–3" (25–76 mm)

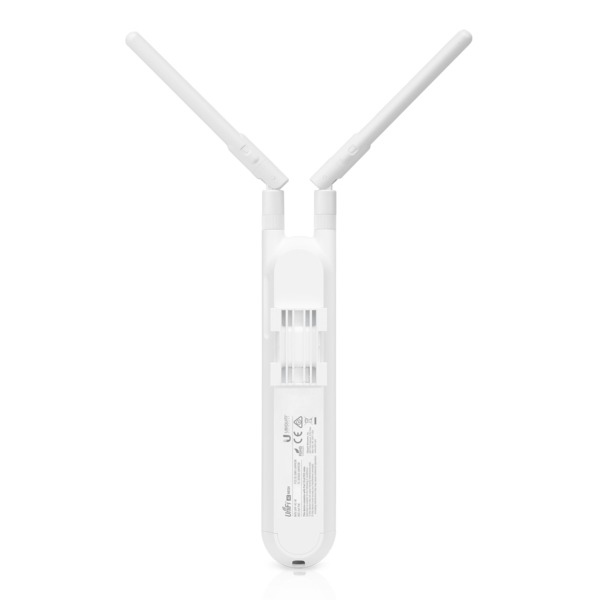

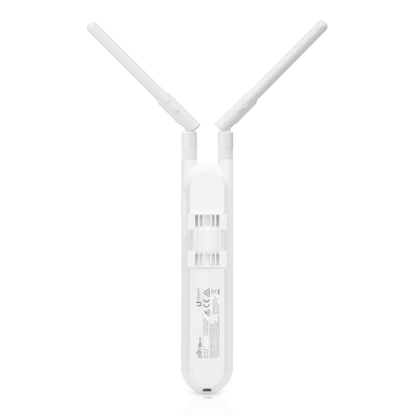

Mounting: Wall / Pole (mounts included)

Compliance / Certifications

NDAA compliant: Yes

Certifications:

CE

FCC

IC

UKCA

Anatel: 01769-18-08356

Operating Conditions

Operating frequency (worldwide):

2400 – 2483.5 MHz

5150 – 5725 MHz

Ambient operating temperature:

-30 to 70°C (-22 to 158°F)

Ambient operating humidity:

5% to 95% non-condensing
