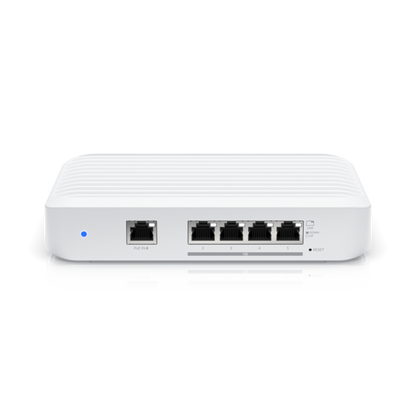

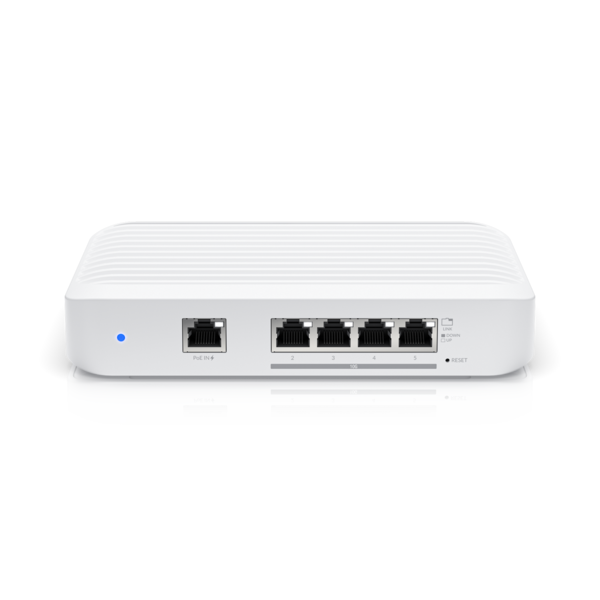

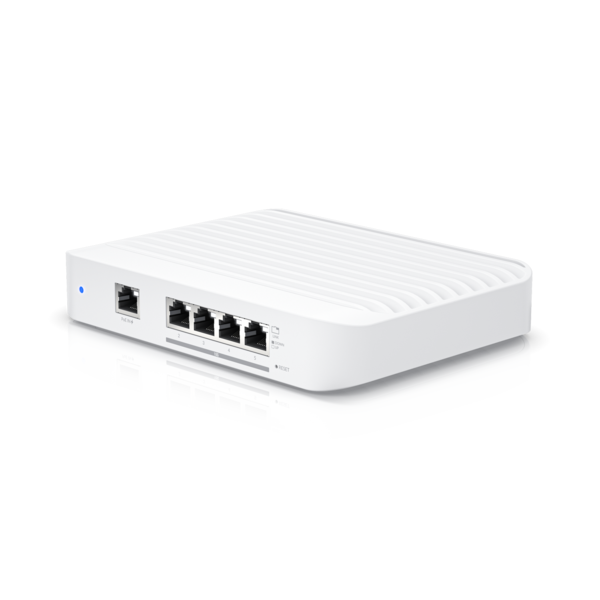

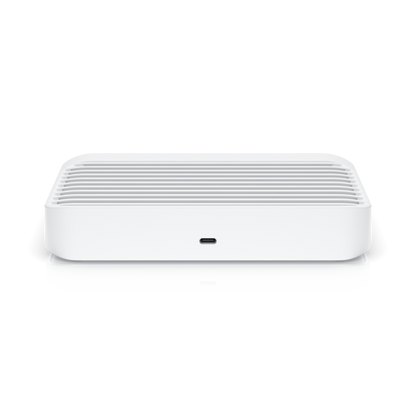

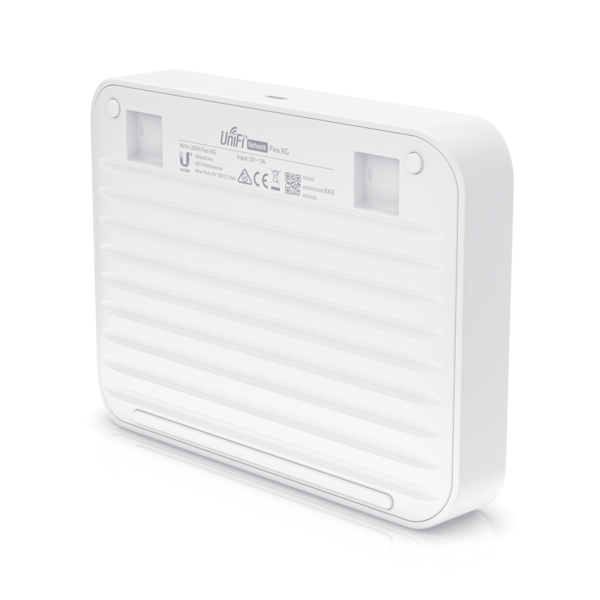

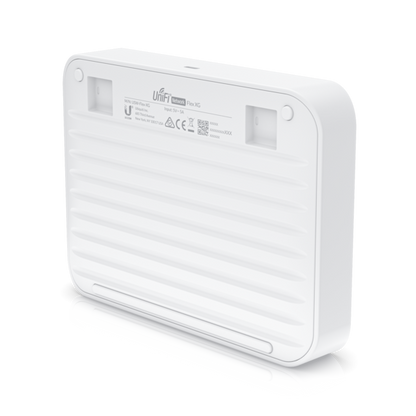

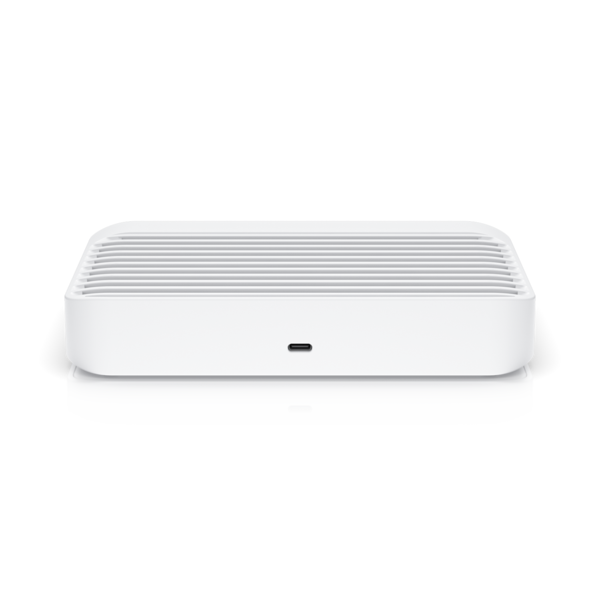

Ubiquiti UniFi Switch Flex XG - Layer 2 Switch

Ubiquiti Switch Flex XG (USW-Flex-XG)

Product Overview

Managed Layer 2 multi-gigabit switch

Compact, slim design for flexible placement

Designed for high-performance 10GbE switching

Centrally managed via UniFi Network Application

Important note: Do not stack other hardware on the USW Flex XG

Switch Type / Services

Layer 2 managed switch

SMB Layer 2 Gigabit Ethernet Switch (service category)

Ports / Networking Interfaces

1 × 10/100/1000 Mbps RJ45 Ethernet (PoE input)

4 × RJ45 multi-gigabit ports supporting:

100 / 1,000 / 2,500 / 5,000 / 10,000 Mbps (10GbE)

PoE / Power Input

PoE input: 802.3at PoE+ (50–57 VDC, 25 W)

Alternative power input: USB Type-C (5 VDC, 5 A)

Power Supply

802.3at PoE input supported:

Pins 1,2+ / 3,6- or 4,5+ / 7,8-

Included AC/DC power adapter:

5 VDC, 5 A

1.5 m cord

Adapter supported voltage range: 90–264 VAC

Performance

Total non-blocking throughput: 41 Gbps

Switching capacity: 82 Gbps

Forwarding rate: 61.012 Mpps

Power Consumption

Maximum power consumption: 25 W

Management

Management interface: Ethernet (in-band)

UniFi Network Application support:

Central management of multiple networks

Real-time device insights

Deep configuration options

Remote firmware upgrades

User/guest management

Guest hotspot customization (design, privacy, architecture)

Web access via unifi.ui.com

Mobile app support (iOS / Android)

No licensing fees when paired with UniFi OS Console

Hardware Design

Enclosure material: Polycarbonate

Mechanical Specifications

Dimensions: 135 × 185 × 32 mm

Weight: 1.2 kg

Protection

ESD/EMP protection:

Air: ±16 kV

Contact: ±12 kV

Controls

Factory reset button

Operating Environment

Operating temperature: -5°C to 45°C

Operating humidity: 10% to 90% (non-condensing)

LED Indicators

System LED (Power – Blue/White)

Flashing white: Bootup in progress

Flashing blue: Firmware upgrading

Steady white: Factory defaults, awaiting adoption

Steady blue: Device adopted

Ethernet LED

White: Link/activity

Certifications

CE

FCC

IC
