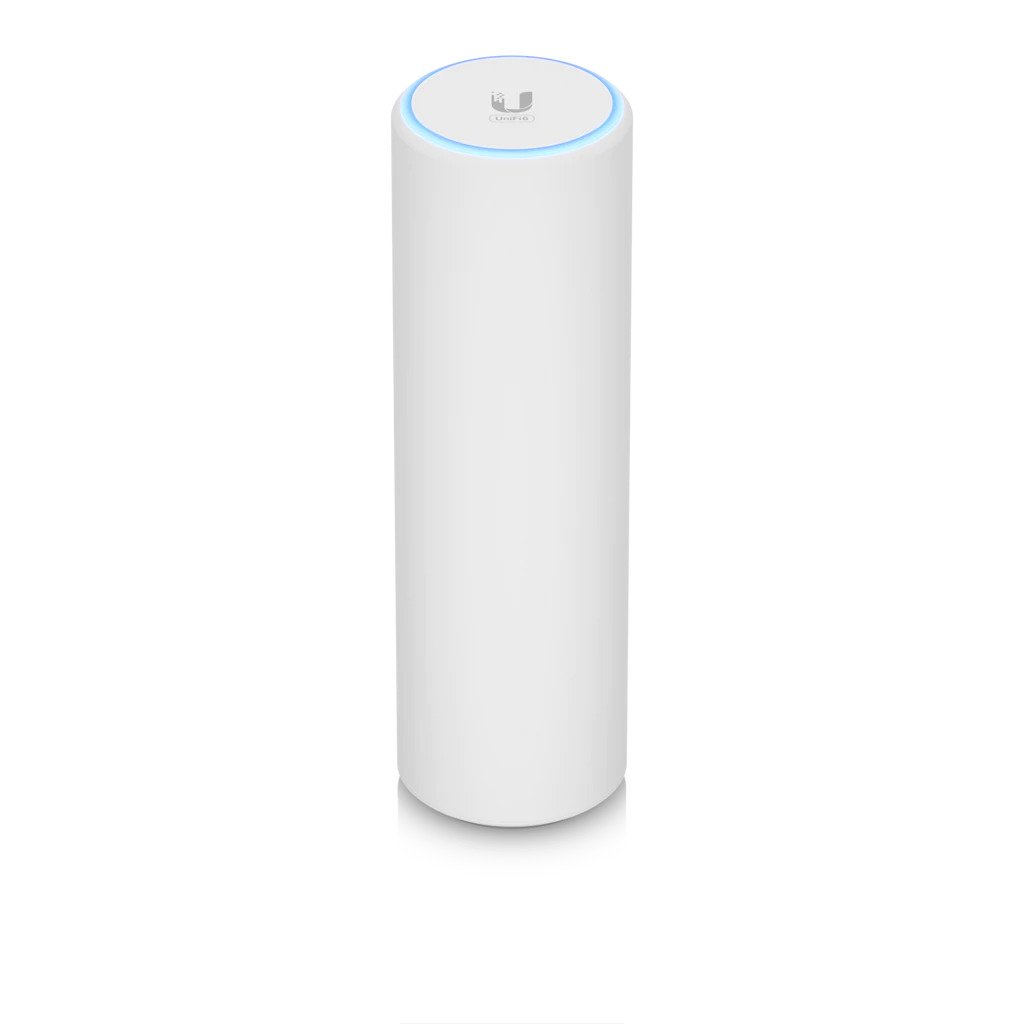

Ubiquiti Unifi Wi-Fi 6 Mesh AP

WiFi 6 Mesh Access Point (U6 Mesh)

Product Overview

Indoor / outdoor WiFi 6 access point designed for mesh deployments

High-performance 4-stream AP for extending wireless coverage

Plug-and-play mesh device for seamless network expansion

Rugged IPX5-rated waterproof housing for outdoor operation

Managed via UniFi Network Application

Wireless Technology

WiFi 6 (802.11ax)

High-efficiency 4×4 WiFi 6 design

Aggregate throughput up to 5.3 Gbps

Radio / Band Performance

5 GHz band:

4×4 MU-MIMO

OFDMA

Throughput up to 4.8 Gbps

2.4 GHz band:

2×2 MIMO

Throughput up to 573.5 Mbps

Supports 160 MHz channel width

Operates at full 4×4 MIMO for high-capacity wireless uplinks

Mesh & Coverage

Optimized for wireless mesh applications

Enhances wireless signal extension for full coverage

Designed for home and enterprise environments

Weather & Durability

Weatherproof rating: IPX5 (waterproof housing)

Suitable for indoor and outdoor deployments

Management & Setup

Managed locally or remotely via UniFi Network App

Runs on UniFi OS Console for full management features

Web access: unifi.ui.com

Mobile apps: iOS / Android

Can be configured standalone (limited features)

Networking Interface

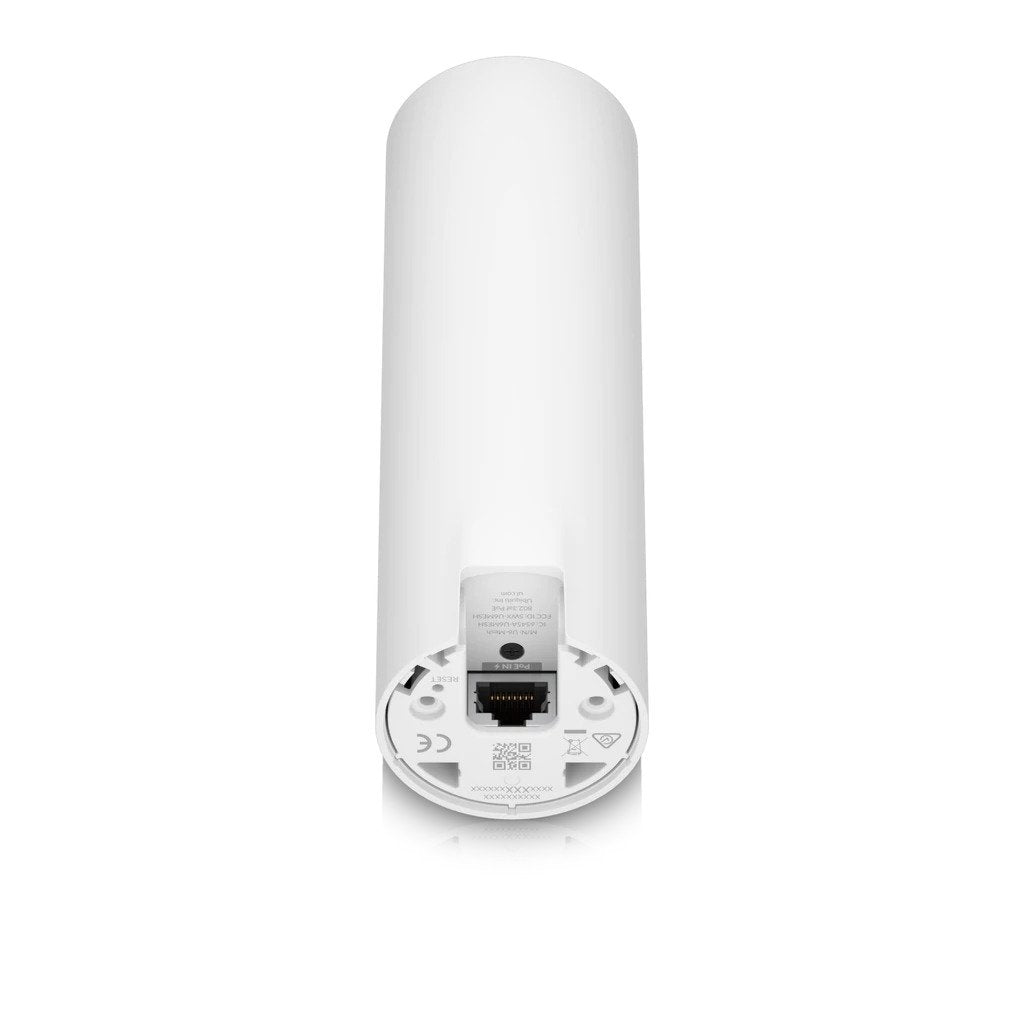

1 × GbE RJ45 Ethernet port

Power

Power method: 802.3af PoE

Power supply options:

UniFi PoE Switch

48V, 0.32A PoE adapter (included)

Supported voltage range: 44 – 57 VDC

Maximum power consumption: 11.4 W

LED Indicator

White / Blue LED only

Note: LED colour modes limited due to chip supply shortages

Performance Specs

Max TX power:

2.4 GHz: 22 dBm

5 GHz: 26 dBm

MIMO configuration:

2.4 GHz: 2×2 (UL MU-MIMO)

5 GHz: 4×4 (DL/UL MU-MIMO)

Antenna gain:

2.4 GHz: 3 dBi

5 GHz: 5 dBi

Mounting Options

Included:

Wall mount

Desktop placement

Pole mount

Optional:

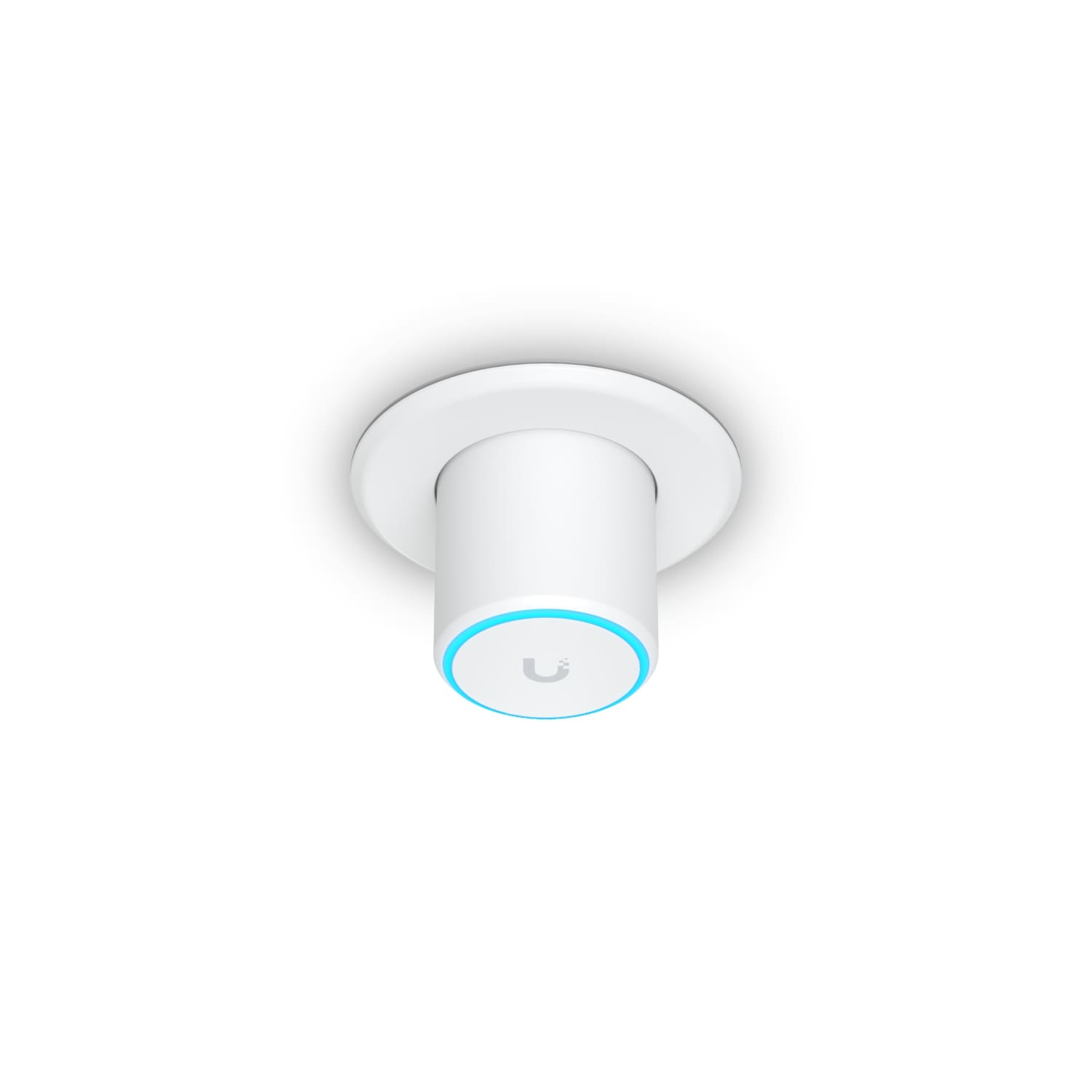

Ceiling mount

Mechanical Specifications

Dimensions: Ø48.5 × 159.5 mm

Weight: 400 g

Enclosure material: Plastic, Aluminium

Mount material: Plastic

Operating Environment

Operating temperature: -30°C to 60°C

Operating humidity: 5% – 95% (non-condensing)

Certifications

CE

FCC

IC

Software / Network Features

Supported Wi-Fi standards:

802.11a / b / g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

Wireless security:

WPA-PSK

WPA-Enterprise (WPA/WPA2/WPA3)

BSSID: 8 per radio

VLAN: 802.1Q

Advanced QoS: Per-user rate limiting

Guest Traffic Isolation: Supported

Concurrent clients: 300+

Zero-wait DFS: Yes*

*Supported with upcoming firmware versions

Supported Data Rates

802.11a: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps

802.11b: 1 / 2 / 5.5 / 11 Mbps

802.11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps

802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT20/40)

802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0–MCS9, NSS1–4, VHT20/40/80/160)

802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0–MCS11, NSS1–4, HE20/40/80/160)
