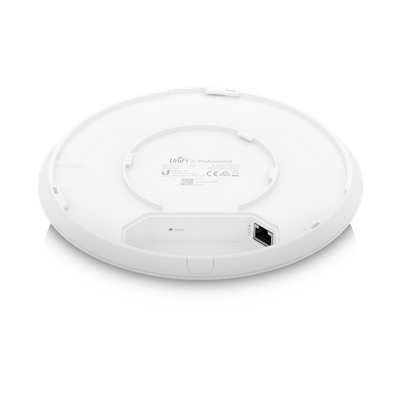

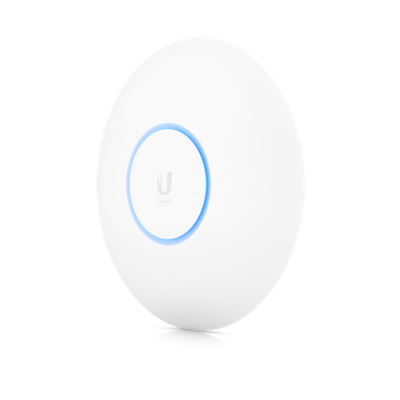

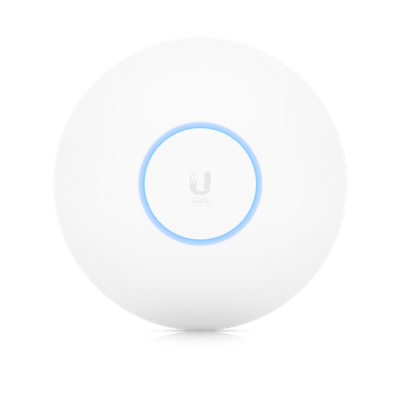

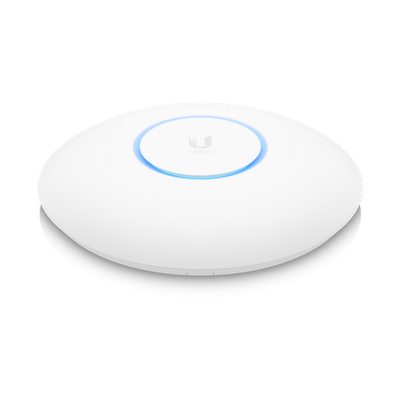

Ubiquiti UniFi Wi-Fi 6 Pro AP

Access Point Wi-Fi 6 Pro (U6 Pro)

Product Overview

Indoor, dual-band Wi-Fi 6 (802.11ax) access point

Designed for home and office environments

Supports 300+ concurrent clients

Aggregate throughput up to 5.3 Gbps

Best-in-class Wi-Fi coverage and performance

Wireless Technology

Dual-band Wi-Fi 6 (802.11ax)

5 GHz band:

4×4 MU-MIMO

OFDMA

Up to 4.8 Gbps throughput

2.4 GHz band:

2×2 MU-MIMO

OFDMA

Up to 573.5 Mbps throughput

Supports 160 MHz channel width

Operates at full 4×4 MIMO

Client Capacity

Supports over 300 concurrent client connections

Security & Network Features

WPA-PSK

WPA-Enterprise (WPA / WPA2 / WPA3)

Guest Traffic Isolation

VLAN support (802.1Q)

Per-user rate limiting (Advanced QoS)

Up to 8 BSSIDs per radio

Management & Deployment

Managed via UniFi Network web application or mobile app

Local or remote management via UniFi OS Console

Can operate as a standalone device with limited functionality

Accessible via unifi.ui.com or mobile app (iOS / Android)

Mechanical Specifications

Dimensions: Ø197 × 35 mm

Weight:

460 g (without mount)

600 g (with mount)

Enclosure material: Plastic

Mount material: SGCC steel

Mounting options: Wall or ceiling (mounting hardware included)

Weatherproof rating: IP54

Hardware Interfaces

1 × Gigabit Ethernet (RJ45)

Management interfaces:

Ethernet

Bluetooth

Reset button: Factory reset

LED Indicators

White / Blue only

Note: LED color modes limited due to chip supply shortages

Power

Power method: PoE

Supported voltage range: 44–57 VDC

Maximum power consumption: 13 W

Radio Performance

Maximum TX power:

2.4 GHz: 22 dBm

5 GHz: 26 dBm

Antenna gain:

2.4 GHz: 4 dBi

5 GHz: 6 dBi

Throughput Rates

2.4 GHz: 573.5 Mbps

5 GHz: 4.8 Gbps

MIMO Configuration

2.4 GHz: 2×2 UL MU-MIMO

5 GHz: 4×4 DL/UL MU-MIMO

Operating Environment

Operating temperature: -30°C to 60°C

Operating humidity: 5–95% non-condensing

Certifications

CE

FCC

IC

Wi-Fi Standards Supported

802.11a / b / g

Wi-Fi 4 (802.11n)

Wi-Fi 5 (802.11ac)

Wi-Fi 6 (802.11ax)

Supported Data Rates

802.11a: 6 to 54 Mbps

802.11b: 1 to 11 Mbps

802.11g: 6 to 54 Mbps

802.11n (Wi-Fi 4): 6.5 Mbps to 600 Mbps

802.11ac (Wi-Fi 5): 6.5 Mbps to 3.4 Gbps

802.11ax (Wi-Fi 6): 7.3 Mbps to 4.8 Gbps

Additional Features

Zero-wait DFS support (via upcoming firmware)

Universal mounting plate, backing plate, and screw kit included
